Initially developed to shield critical defense and aerospace electronic systems, conductive elastomers have evolved into a preferred solution for designers across consumer electronics, telecommunications, industrial equipment, automotive, medical devices, and more.
Our materials deliver reliable EMI shielding solutions, customizable to your specific size requirements. Available in sheet, molded, and extruded forms, they perform reliably across a wide temperature range.
* Minimum quantities apply.

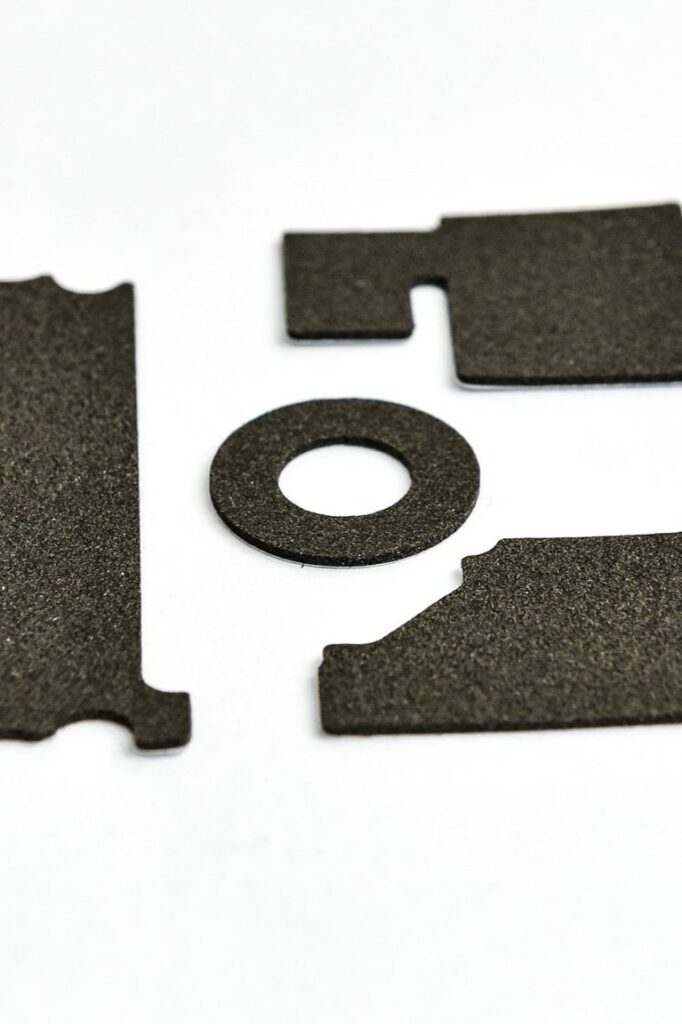

Available in various thicknesses, with or without PSA (pressure-sensitive adhesive), and designed for large area coverage. Custom-cutting options ensure a flexible fit for any project.*

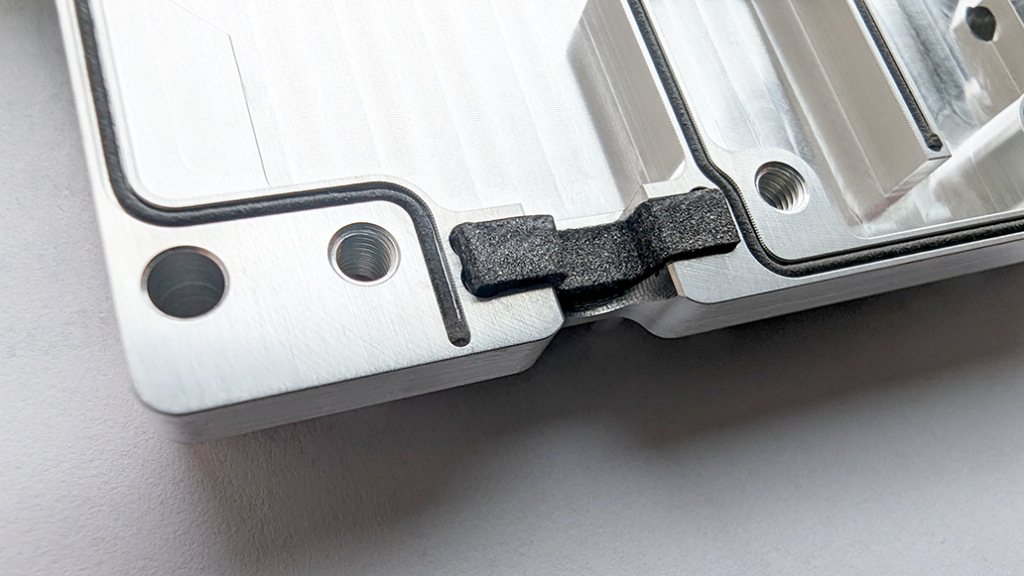

Ideal for die-cast metal and complex structures, these heat-curable gaskets are precision-molded for optimal fit.*
NiC filler is standard; other fillers are available upon request.

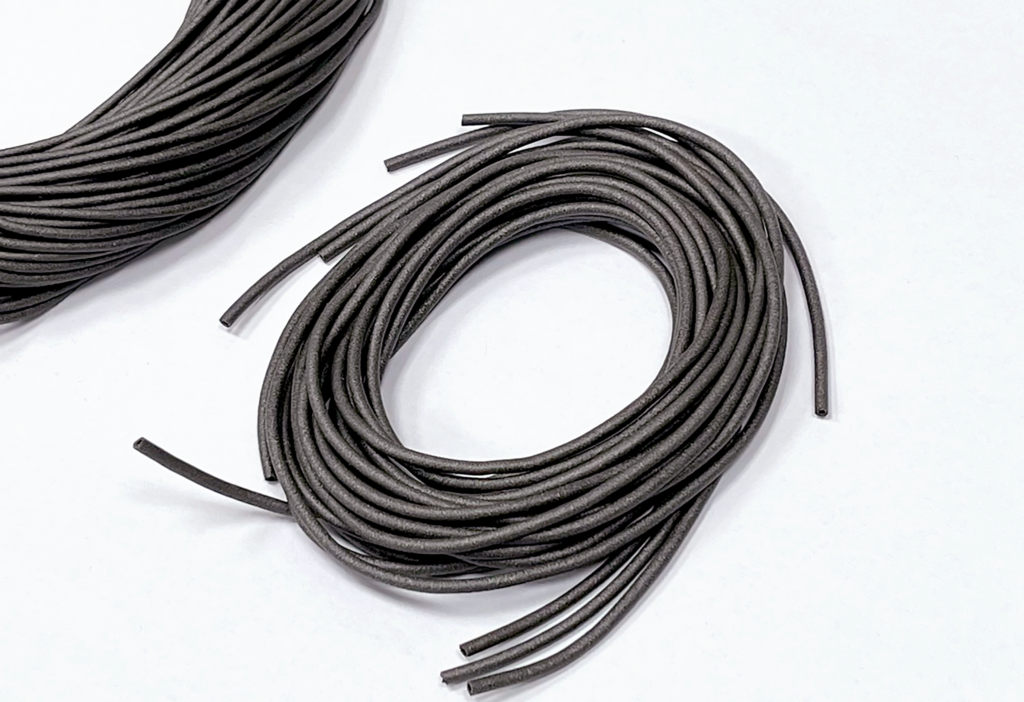

Extruded gaskets come in long rubber strips that can be spliced into full frames—ideal for large rings. Custom splicing available. Low compression set. Easy to rework.*
Click on any part number to view the data sheet.
| Typical Properties | ELECTRICALLY CONDUCTIVE SILICONE RUBBER SHEETS | ELECTRICALLY CONDUCTIVE SILICONE RUBBER MOLDED GASKET | ELECTRICALLY CONDUCTIVE SILICONE RUBBER EXTRUDED GASKET |
|---|---|---|---|
| Part Number | S3301 | M1303 | E5301 |
| Shielding Effectiveness | >100 dB | >100 dB | N/A |
| Softness | 60 Shore A | 40 Shore A | 50 Shore A |
| Specific Gravity | 2.0 g/cm³ | 2.03 g/cm³ | 2.0 g/cm³ |
| Tensile Strength | 150 psi | 100 psi | 780 psi |
| Tear Strength | 40 lb/in | 15 lb/in | N/A |
| Operating Temperature | -45 to 150 °C | -45 to 150 °C | -45 to 200 °C |
| Color | Dark Gray | Dark Gray | Dark Gray |
| Standard Thickness | 0.50, 0.75, 1.00 mm (custom sizes available) | N/A | N/A |
| Sheet Size | 285 x 500 mm | N/A | N/A |
